Proflute MolSieve Rotor [Desiccant Rotor, Dryer, Dehumidification, Desiccant Rotors, Desiccant, Rotor/PPS Silica Gel rotor/PPH rotor/PPM Molecular Sieve rotor

ProFlute
Proflute was founded in Sweden in 1998 with the ambition to become a leading company within desiccant and evaporative technologies. Already from the start all inventions were patented, to protect not only the unique performance of the products,
but also to protect the integrity of the company.
Constant investments in the latest production technology has enabled Proflute to live up to the highest demands in terms of accurate deliveries.
　

ProFlute Applications

Energy efficient dehumidification

Latent load removal

Simplify drying processes

Improve manufacturing processes/ product quality

Preservations/Inhibit growth of microscopic organisms

Corrosion/Condensation Prevention

Energy/voc recovery

Desiccant (non-CFCs) cooling

PPS/PPX Rotor : For all purposes		PPH Rotor : For Hygienic enhancement		PPM Rotor : For Super low humidity

Material Compositions:		Material Compositions:		Material Compositions:

82% Active Silica Gel 16% glas fibre 2% Acrylic surface coating		80% Active Silica Gel 2% LiCL 0.1% microbiological growth restraint 16% glas fibre 2% Acrylic surface coating		37% Molecular Sieve 45% Active Silica Gel 16% glas fibre 2% Acrylic surface coating

Applications:		Applications:		Applications:
	Suitable for General dehumidification applications such as steel bridge, electronics, seed storage, laminating glass, candy, desiccant cooling, etc.		Suitable for applications where enhanced bacteriostatic is required such as pharmaceutical, food, etc.		Suitable for applications with very low dew point and/or high process air temperature such as Lithium battery, plastic hopper, etc.
	Suitable for neutral to acidic environment.				Suitable for alkaline to neutral environment
	PPX (modified silica gel) suitable for big moisture depressions such as milk powder, compressed air drying, product drying & conveying, etc.

ProFlute Advantages
High Content of Active Desiccant
ProFlute next generation Desiccant Rotor is designed for high performance, enhanced energy efficiency, and long service life.

High Adsorption Capacity
ProFlute rotor has high static capacity; picking up approximately 40% of its dry weight as moisture in humid environment. This results in high dynamic capacity as shown in diagrams.

　

Fire Resistance and High Surface Compression Strength

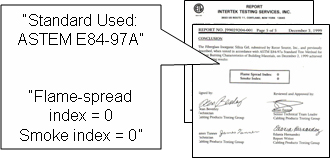

Test results according to ASTM E84 confirm that ProFlute rotor is fire proof. Achieved a flame-spread index of 0 and a smoke index 0. The rotor also has more than 200kpa surface compression strength.

Comprehensive Technical Support
All essential performance data of our rotor can be easily calculated using our simulation software provided for all regular customers. Long experience in climate control ensures that we will be able to provide all the technical supports you need for successful implementation of our products in all your applications.

High degree of Flexibility
The variety of rotor type ensures that we can find a suitable product for various challenges your applications may meet; i.e., very low dew point, alkaline or acidic environment or hygienic environment.
　

High degree of Customization

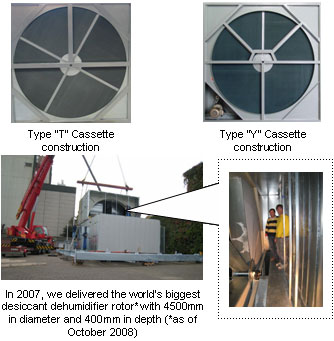

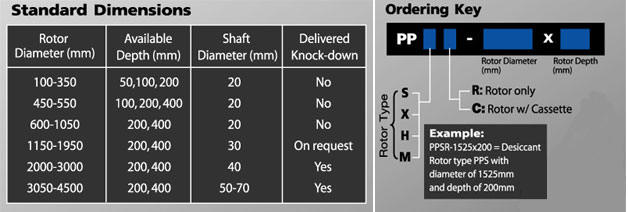

We can provide rotor with customized sizes and details as well as replacement rotors that can fit most existing dehumidifiers known in the marketplace. We can also provide various choices of rotor, cassette, and driving system, with choices for fully assembled or in knock-down form to suit any of your specific demands.
